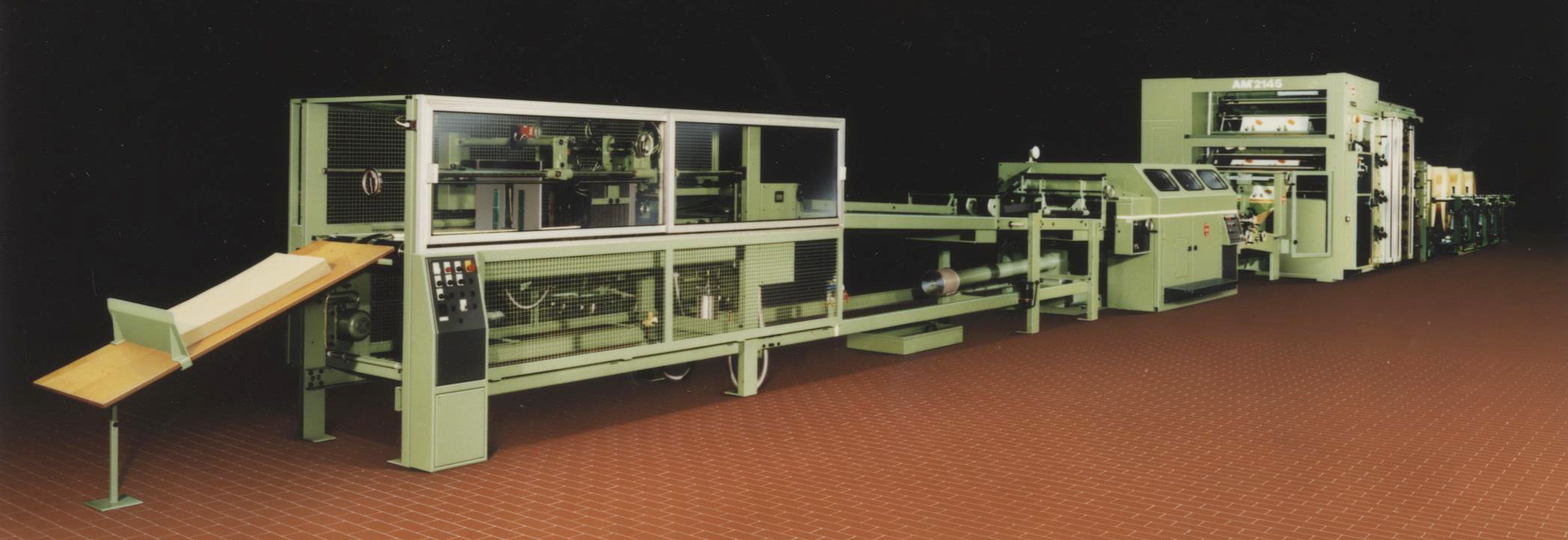

Stepped - end Tuber AM 2145 S for 4 plies, Ref. 9062 G

At a Glance

ManufacturerWindmöller & Hölscher
Year of construction1988 / 2021 reconditioned and with new electrics

Technical data
Tube width28 - 60 cm
Tube length40 - 105 cm
Paper roll diametermax. 130 cm

Product information

Essentially equipped with

  • New Unwind for 4 plies, for max. reel Ø 1.300 mm
  • New automatic edge guide control for 4 plies, type BST
  • S draw for tension control
  • Perforation with central tension adjustment for 4 plies
  • Balance roller for PE ply
  • Cross pasting with continuous rotation of the glue rollers at machine standstill and glue level control
  • Crank loops with web tension adjustment for 4 plies
  • Longitudinal pasting with glue level control and central tension adjustment for 4 plies
  • Tube forming table for flat tubes
  • machinery head AM 2145 S with
    • belt tear-off unit
    • 2 draw units and pneumatic pressing
    • Noise protection hood
    • new TDG 2-motor drive system and PCS
  • Ejector belts
  • Pressing, counting and packetizing station
  • New switch cabinet with Siemens S7 control, A.C. main drive and touch panel

Stepped-end tuber AMV 2170/65 for 4 plies, Ref. 7303 G

At a Glance

ManufacturerWindmöller & Hölscher
Year of construction1977 / 2021 reconditioned and with new electrics

Technical data
Tube width30 - 65 cm
Tube length55 - 132 cm
Tube roll widthmax. 133 cm
Paper roll diametermax. 130 cm

Product information

Essentially equipped with

  • 4 unwind stands with semi-automatic reel change
  • Paper web brake
  • new lateral edge guide for 4 plies, type BST
  • S-draw unit
  • Perforation unit / stepped-end unit
  • Cross pasting with continuous rotation of the rollers at machine standstill
  • Longitudinal pasting
  • Tube forming station
  • main machine / machine head with
    • draw
    • tear-off system
    • new TDG 2-motor drife system and PCS
  • Ejector belts
  • Press-, counting and packetizing station
  • New switch cabinet with Siemens S7 control, A.C. main drive and touch panel

Flush-cut and stepped-end tuber AM 2160/65 R, Ref. 8144 G

At a Glance

ManufacturerWindmöller & Hölscher
Year of construction1975 / 2020 reconditioned

Technical data
Tube length with flush-cut55 - 165 cm
Tube length with stepped-end55 - 132 cm
Tube width30 - 65 cm
Paper reel diametermax. 130 cm

Product information

Essentially equipped with

  • 4 unwind stands with shafts and cones, semi-automatic reel change
  • Automatic paper web brake
  • Edge guide control
  • S-draw unit
  • Perforation stand for 4 plies in a 6-ply frame for the production of stepped-end tubes, driven by sliding cranks, with lateral adjustment
  • Cross-pasting station for 4 plies in a 6-ply frame, driven by sliding cranks, with regulation of each station in longitudinal direction and for additional fine adjustment, including continuous rotation of the glue rollers at machine standstill
  • register rollers for the adjustment of the cross-pasting and perforation
  • longitudinal pastin
  • Tube formation for flat tubes
  • Machine head with 2 paper draws, pneumatic pressing, hold-down rollers, tear-off-station, auxiliary draw between holding rollers and cutting device, cutting unit driven by sliding crank, with change gearbox (Norton box) for cuts of 5 x 5 mm between 55 – 132 cm and 10 mm over 132 cm cut-off length
  • Register control / photocell for the work with pre-printed material, with regulator, PIV and control
  • ejector belts and press-, counting- and separating station
  • New switch cabinet with Siemens S7 control, A.C. main drive and touch panel
